Product Summary

The m67706 is a 4W FM portable radio.

Parametrics

m67706 absolute maximum ratings: (1)supply voltage: 9V; (2)total current: 2.5A; (3)input power: 150mW; (4)output power: 5W; (5)operating case temperature: -30 to 110°C; (6)storage temperature: -40 to 110°C.

Features

m67706 features: (1)frequency range: 896 to 941MHz; (2)output power: 4W; (3)total efficiency: 30%; (4)2nd. harmonic: -30dbc; (5)input VSWR: 4.

Diagrams

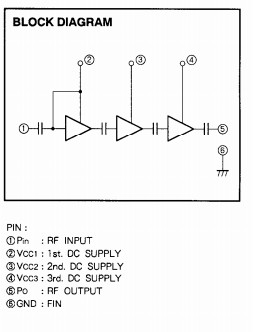

m67706 block diagram
