Product Summary

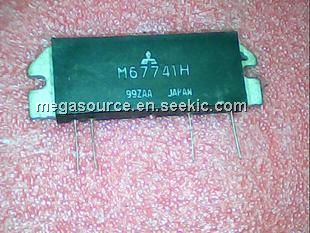

The m67741h is a 150-175MHz, 12.5V, 30W FM mobile radio.

Parametrics

m67741h absolute maximum ratings: (1)supply voltage: 17V; (2)total current: 7A; (3)input power: 500mW; (4)output power: 35W; (5)operating case temperature: -30 to 110°C; (6)storage temperature: -40 to 110°C.

Features

m67741h features: (1)frequency range: 150 to 175MHz; (2)output power: 30W; (3)total efficiency: 40%; (4)2nd. harmonic: -25dbc; (5)3rd. harmonic: -30dbc; (6)input VSWR: 3.3.

Diagrams

m67741h block diagram
