Product Summary
The tim0910-10ul is a microwave power GAAS FET.
Parametrics
tim0910-10ul absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 11.5A; (4)Total Power Dissipation (Tc= 25 °C)PT: 60W; (5)Channel Temperature Tch: 175°C; (6)Storage Temperature Tstg: -65 to +175°C.
Features
tim0910-10ul features: (1)high power: p1db=40.5dbm at 9.5ghz to 10.5ghz; (2)broad band internally matched; (3)high gain: g1db=6.0db at 9.5ghz to 10.5ghz; (4)hermetically sealed package.

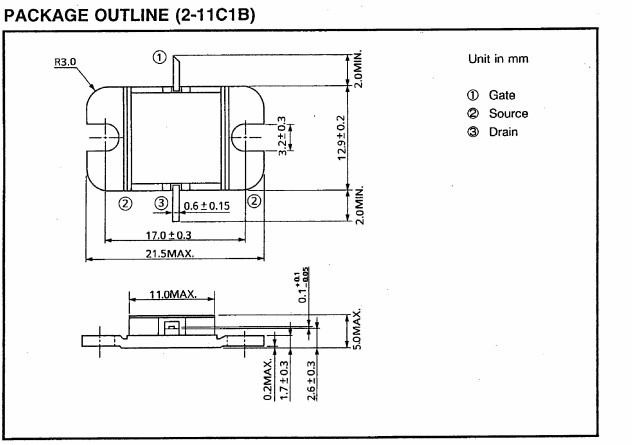

Diagrams
