Product Summary
The tim4450-16sl is a microwave power GaAs FET.
Parametrics
tim4450-16sl absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 14A; (4)Total Power Dissipation (Tc= 25 °C)PT: 83.3W; (5)Channel Temperature Tch: 175°C; (6)Storage Tstg: -65 to +175°C.
Features
tim4450-16sl features: (1)high power: P1dB=42.5dBm at 4.4GHz to 5.0GHz; (2)broad band internally matched fet; (3)high gain: G1dB=10.0dB at 4.4GHz to 5.0GHz; (4)hermetically sealed package.

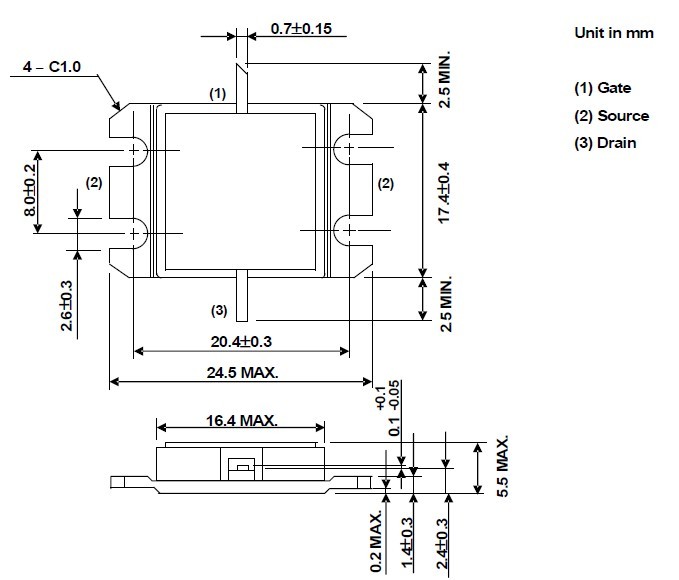

Diagrams
