Product Summary

The tim4450-8l is a microwave power GAAS FET.

Parametrics

tim4450-8l absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 7.0A; (4)Total Power Dissipation (Tc= 25 °C)PT: 37.5W; (5)Channel Temperature Tch: 175°C; (6)Storage Temperature Tstg: -65 to +175°C.

Features

tim4450-8l features: (1)high power: p1db=39.5dbm at 4.4ghz to 5.0ghz; (2)broad band internally matched; (3)high gain: g1db=9.5db at 4.4ghz to 5.0ghz; (4)hermetically sealed package.

Diagrams

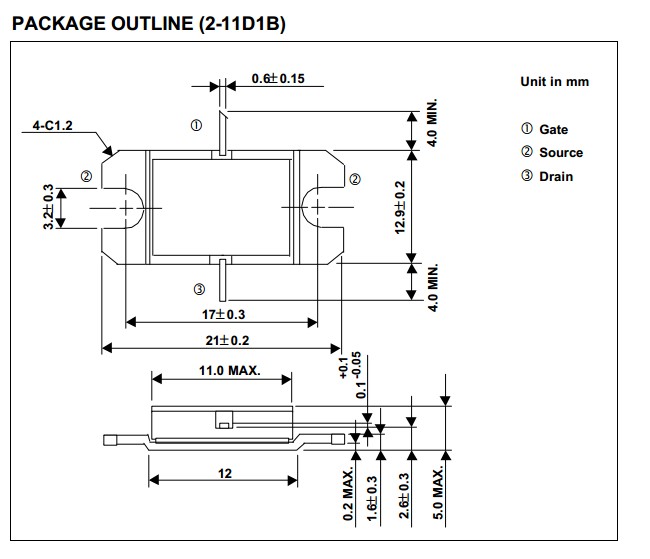

tim4450-8l package dimensions
