Product Summary
The tim5964-25 is a microwave power GaAs FET.
Parametrics
tim5964-25 absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 20.0A; (4)Total Power Dissipation (Tc= 25 °C)PT: 100W; (5)Channel Temperature Tch: 175°C; (6)Storage Tstg: -65 to +175°C.
Features
tim5964-25 features: (1)high power: p1db=44.5dbm at 5.9ghz to 6.4ghz; (2)broad band internally matched; (3)high gain: g1db=10.0db at 5.9ghz to 6.4ghz; (4)hermetically sealed package.

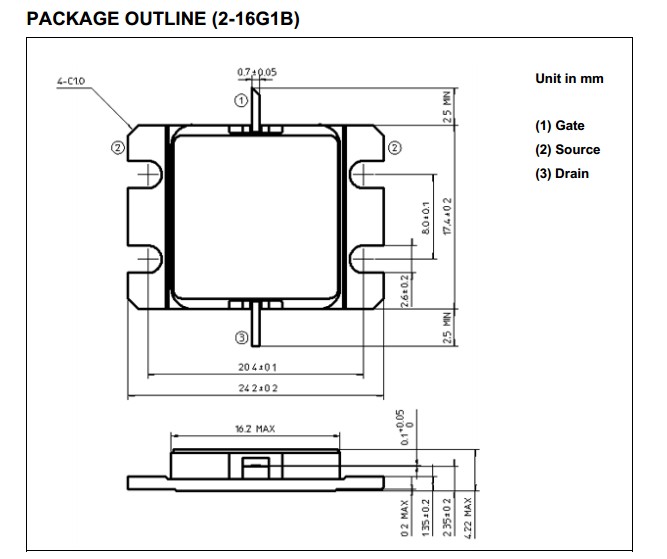

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIM5964-25UL |
Other |
|
Data Sheet |
Negotiable |
|
||||
