Product Summary
The tim7785-16sl is a microwave power GAAS FET.
Parametrics
tim7785-16sl absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 14.0A; (4)Total Power Dissipation (Tc= 25 °C)PT: 75W; (5)Channel Temperature Tch: 175°C; (6)Storage Temperature Tstg: -65 to +175°C.
Features
tim7785-16sl features: (1)Low intermodulation distortion- IM3= -45 dBc at Po = 31.5 dBm, Single carrier level; (2)High power- P1dB = 42.5 dBm at 7.7ghz to 8.5ghz; (3)High gain- G1dB = 5.5dB at 7.7ghz to 8.5ghz; (4)Broad band internally matched; (5)Hermetically sealed package.

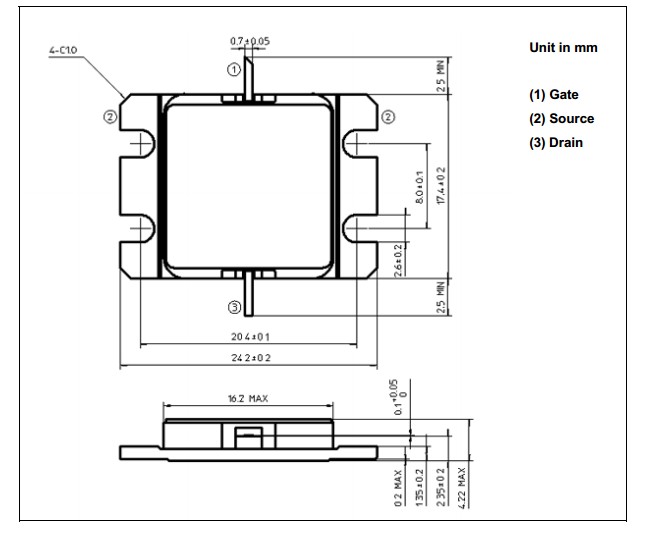

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIM7785-16SL |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
TIM7179-45SL |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIM7179-8UL |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIM7785-16 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIM7785-16SL |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIM7785-16UL |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIM7785-30SL |
Other |
|
Data Sheet |
Negotiable |
|
||||
