Product Summary

The 24AA32AT-I/MC is a 32 Kbit Electrically Erasable PROM. The device is organized as a single block of 4K x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 μA and 1 mA, respectively. The 24AA32AT-I/MC has been developed for advanced, low-power applications such as personal communications or data acquisition.

Parametrics

24AA32AT-I/MC absolute maximum ratings: (1)VCC: 6.5V; (2)All inputs and outputs w.r.t. VSS: -0.3V to VCC +1.0V; (3)Storage temperature: -65 to +150℃; (4)Ambient temperature with power applied: -40 to +125℃; (5)ESD protection on all pins: ≥ 4 kV.

Features

24AA32AT-I/MC features: (1)2-Wire Serial Interface, I C Compatible; (2)Cascadable up to Eight Devices; (3)Schmitt Trigger Inputs for Noise Suppression; (4)Output Slope Control to Eliminate Ground Bounce; (5)100 kHz and 400 kHz Clock Compatibility; (6)Page Write Time 5 ms max; (7)Self-Timed Erase/Write Cycle; (8)32-Byte Page Write Buffer; (9)Hardware Write-Protect; (10)ESD Protection > 4,000V; (11)More than 1 Million Erase/Write Cycles; (12)Data Retention > 200 Years; (13)Factory Programming Available; (14)Packages Include 8-lead PDIP, SOIC, TSSOP, MSOP, DFN, TDFN and 5-lead SOT-23; (15)Pb-Free and RoHS Compliant.

Diagrams

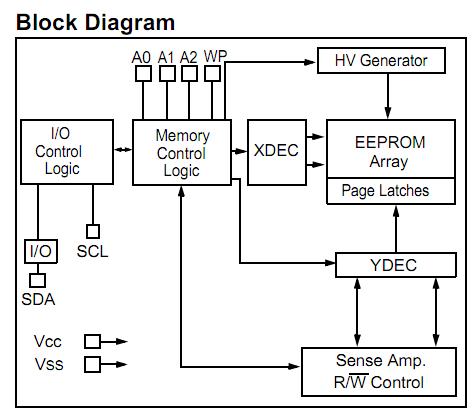

24AA32AT-I/MC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
24AA32AT-I/MC
24AA32AT-I/MC
Microchip Technology
EEPROM 32K 4KX8 1.8V SER EE IND
Data Sheet
0-1: $0.32
1-10: $0.25
10-25: $0.25
25-100: $0.23
24AA32AT-I/MCB27
24AA32AT-I/MCB27
Other

Data Sheet
Negotiable
