Product Summary

The FS30R06XL4 is an IGBT-Module.

Parametrics

FS30R06XL4 absolute maximum ratings: (1)collector emitter voltage, Tvj = 25℃, VCES: 600V; (2)DC collector current, TC = 60℃,IC,nom: 30A; (3)DC collector current, TC = 25℃, IC: 35A; (4)repetitive peak collector current, tp= 1ms, TC = 60, ICRM: 60A; (5)total power dissipation, Tc= 25℃, Transistor, Ptot: 119W.

Features

FS30R06XL4 features: (1)collector emitter saturation voltage, VGE= 15V, Tvj= 125℃, IC= IC,nom, VCEsat: 2 TO 20V; (2)gate threshold voltage, VCE= VGE, Tvj= 25℃, IC= 0.7MA, VGE(th): 4.5 TO 6.5V; (3)gate charge, VGE= -15V TO+15V, QG: 0.16μC.

Diagrams

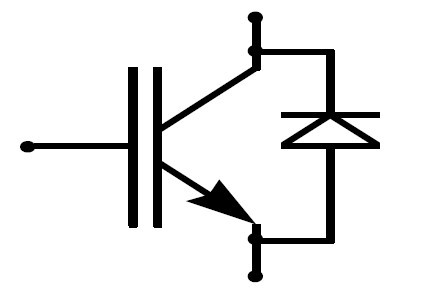

FS30R06XL4 simplified diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

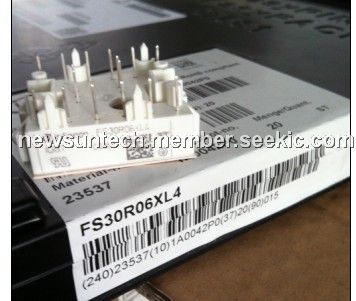

FS30R06XL4
FS30R06XL4
Infineon Technologies
IGBT Modules IGBT MODULE
Data Sheet
0-1: $17.27
1-10: $15.54
