Product Summary

The ADG211AKNZ is quad SPST switch. The ADG211AKNZ is a monolithic CMOS device comprising four independently selectable switches. The ADG211AKNZ is designed on an enhanced LC2MOS process, which gives an increased signal handling capability of ±15V.

Parametrics

ADG211AKNZ absolute maximum ratings: (1) VDD to Vss: 44V; (2) VDD to GND: 25V; (3) Vss to GND: -25V; (4) VL to GND: -0.3V, 25V; (5) Analog Inputs Voltage at S, D: Vss -0.3V to VDD +0.3V; (6) Continuous Current, S or D: 30mA; (7) Pulsed Current S or D 1ms Duration, 10% Duty Cycle: 70mA; (8) Power Dissipation (Any Package) Up to +75°C: 470mW; (9) Operating Temperature: -40 to +85°C; (10) Storage Temperature Range: -65 to +150°C; (11) Lead Temperature (Soldering 10 sec) : +300°C.

Features

ADG211AKNZ features: (1) 44V supply maximum rating; (2) 15V analog signal range Low RON: 115 maximum; (3) Low leakage: 0.5 nA typical; (4) Break-before-make switching; (5) Single supply operation possible; (6) Extended plastic temperature range: 40 to +85°C; (7) Available in 16-lead PDIP/SOIC and 20-pead PLCC packages; (8) Pin compatible to DG211/DG212; (9) TTL/CMOS compatible.

Diagrams

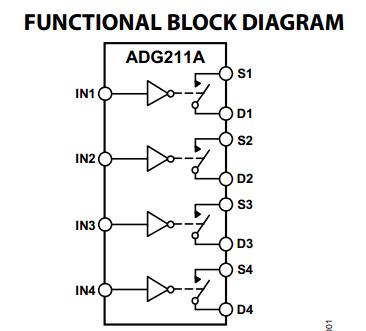

ADG211AKNZ Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADG211AKNZ
ADG211AKNZ

IC SWITCH QUAD SPST 16DIP
Data Sheet
0-1: $2.07
1-25: $1.66
25-100: $1.52
100-250: $1.37
250-500: $1.23
500-1000: $1.04
1000-2500: $0.99
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADG201ABQ
ADG201ABQ
Analog Devices Inc
IC SW ANALOG QUAD SPST 16CDIP
Data Sheet
1-25: $2.77
25-100: $2.34
100-250: $2.25
250-500: $2.20
500-1000: $2.17
ADG201AKN
ADG201AKN

IC SWITCH QUAD SPST 16DIP
Data Sheet
0-125: $1.90

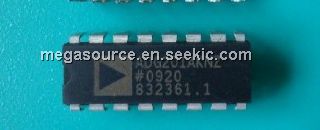

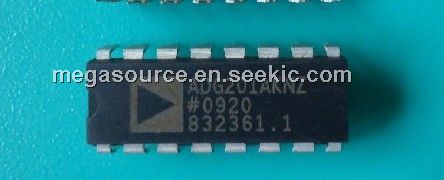

ADG201AKNZ
ADG201AKNZ

IC SWITCH QUAD SPST 16DIP
Data Sheet
0-1: $2.25
1-25: $1.81
25-100: $1.65
100-250: $1.49
250-500: $1.34
500-1000: $1.13
1000-2500: $1.07
ADG201AKP
ADG201AKP

IC SWITCH QUAD SPST 20PLCC
Data Sheet
0-98: $2.43
ADG201AKPZ
ADG201AKPZ

IC SWITCH QUAD SPST 20PLCC
Data Sheet
0-98: $2.10
ADG201AKPZ-REEL
ADG201AKPZ-REEL

IC SWITCH DUAL SPDT 20PLCC
Data Sheet
0-1000: $1.31
