Product Summary
The BD9120HFN-TR is a 1ch DC/DC converter controller IC with built-in synchronous rectifier.
Parametrics
BD9120HFN-TR absolute maximum ratings: (1)supply voltage, VCC: -0.3 to 7V; PVCC: -0.3 to 7V; (2)EN voltage, EN: -0.3 to 7V; (3)SW ITH voltage, SW, ITH: -0.3 to 7V; (4)SW output current, ISW: 1.1A; (5)power dissipation, PD: 1350mW; (6)operating temperature range, Topr: -25 to 85℃; (7)storage temperature range, Tstg: -55 to 150℃; (8)maximum junction temperature, Tjmax: 150℃.
Features
BD9120HFN-TR features: (1)output voltage: adjustable (1.0-1.5V) output current: 0.8A; (2)low operating voltage; (3)high efficiency and fast transient response.

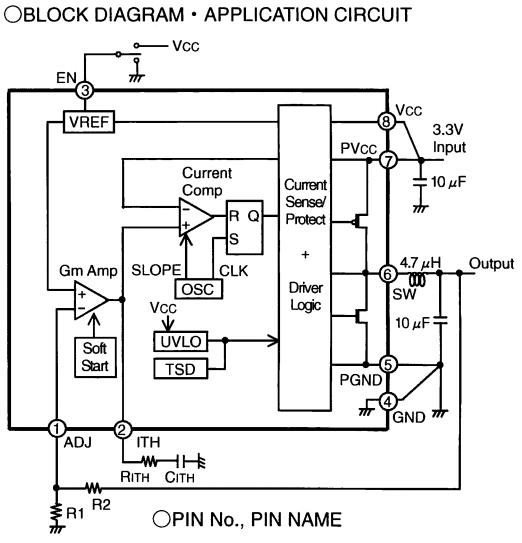

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BD9120HFN-TR |
ROHM Semiconductor |
Switching Converters, Regulators & Controllers Variable Output |
Data Sheet |
|
|
||||||||||||
