Product Summary

The CGRB301-G is a SMD General Purpose Rectifier.

Parametrics

CGRB301-G absolute maximum ratings: (1)Max. repetitive peak reverse voltage, VRRM: 50V; (2)Max. DC blocking voltage, VDC: 50V; (3)Max. RMS voltage, VRMS: 35V; (4)Peak surge forward current, 8.3ms single half sine-wave superimposed on rate load (JEDEC method), IFSM: 100A; (5)Max. average forward current, IO: 3.0A; (6)Max. instantaneous forward at 3.0A, VF, 1.1V.

Features

CGRB301-G features: (1)Ideal for surface mount applications; (2)Easy pick and place; (3)Plastic package has Underwriters Lab. flammability classification 94V-0; (4)Bui lt in strain relief; (5)High surge current capability.

Diagrams

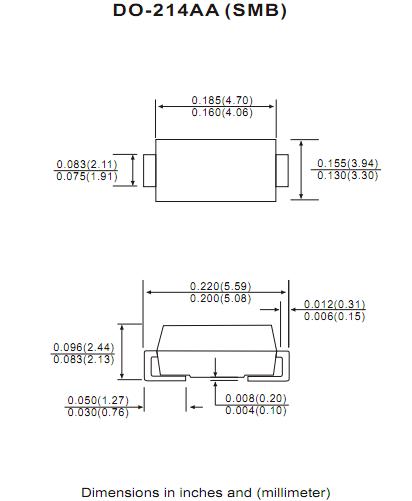

CGRB301-G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CGRB301-G
CGRB301-G
Comchip Technology
Rectifiers GEN PURP RECTIFIER 3A, 50V
Data Sheet
0-3000: $0.07
3000-6000: $0.06
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CGRB201
CGRB201
Other

Data Sheet
Negotiable
CGRB201-G
CGRB201-G
Comchip Technology
Rectifiers Gen Purp Rectifier 50V,2A
Data Sheet
0-1: $0.27
1-10: $0.15
10-100: $0.11
100-250: $0.08
CGRB202-G
CGRB202-G

RECTIFIER 100V 2A DO-214AA
Data Sheet
0-3000: $0.05
CGRB204-G
CGRB204-G
Comchip Technology
Rectifiers GEN PURP RECTIFIER 2A, 400V
Data Sheet
0-1: $0.27
1-10: $0.15
10-100: $0.11
100-250: $0.08
CGRB207
CGRB207
Other

Data Sheet
Negotiable
CGRB207-G
CGRB207-G
Comchip Technology
Rectifiers GEN PURP RECTIFIER 2A, 1000V
Data Sheet
0-1: $0.27
1-10: $0.15
10-100: $0.11
100-250: $0.08
