CS2841BD14

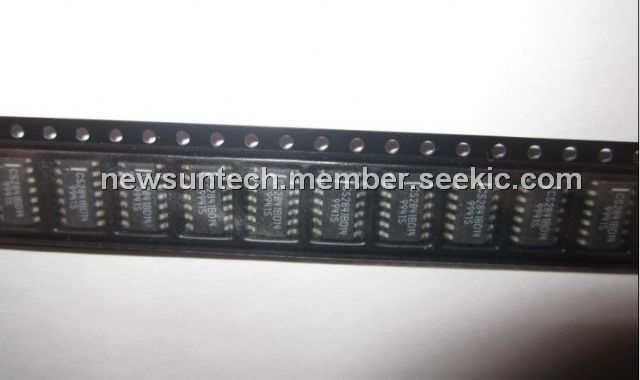

PWM Control Circuit, SOP14, 40V, 5μJ, CS2841BD14, Catalyst Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.05~1.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.05~1.65

PartNumber:: CS2841BD14

Brand:: Catalyst Semiconductor inc - CSI | Pack: SOP | D/C: 00+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. hellen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-20

From Other Seller

Part Number:CS2841BD14
US $1.05 - 1.65
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

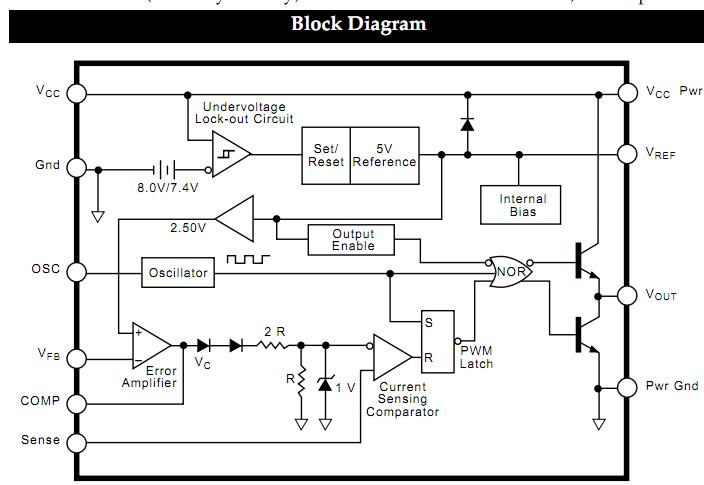

The CS2841BD14 is an Automotive Current Mode PWM Control Circuit. The CS2841BD14 provides all the necessary features to implement off-line fixed frequency current-mode control with a minimum number of external components. The CS2841BD14 (a variation of the CS-2843A) is designed specifically for use in automotive operation. The low start threshold voltage of 8.0V (typ), and the ability to survive 40V automotive load dump transients are important for automotive subsystem designs. The CS2841BD14 has a history of quality and reliability in automotive applications.

Parametrics

CS2841BD14 absolute maximum ratings: (1)Supply Voltage (Low Impedance Source): 40V; (2)Output Current: ±1A; (3)Output Energy (Capacitive Load): 5μJ; (4)Analog Inputs (VFB, Sense): -0.3V to 5.5V; (5)Error Amp Output Sink Current: 10mA; (6)Lead Temperature Soldering; (7)Wave Solder (through hole styles only): 10 sec. max, 260℃ peak; (8)Reflow (SMD styles only): 60 sec. max above 183℃, 230℃ peak.

Features

CS2841BD14 features: (1)Optimized for Off-line Control; (2)Internally Trimmed Temperature Compensated Oscillator; (3)Maximum Duty-cycle Clamp; (4)VREF Stabilized before Output Stage Enabled; (5)Low Start-up Current; (6)Pulse-by-pulse Current Limiting; (7)Improved Undervoltage Lockout; (8)Double Pulse Suppression; (9)1% Trimmed Bandgap Reference; (10)High Current Totem Pole Output.
