Product Summary

The CY2071AF is a general-purpose clock synthesizer designed for use in applications such as modems, disk drives, CD-ROM drives, video CD players, games, set-top boxes, and data/telecommunications. The CY2071AF offers up to three configurable clock outputs in an 8-pin, 150-mil SOIC package and can operate off either a 3.3V or 5V power supply. The on-chip reference oscillator is designed for 10-MHz to 25-MHz crystals. Alternatively, an external reference clock of frequency between 1 MHz and 30 MHz can be used.

Parametrics

CY2071AF absolute maximum ratings: (1)Supply Voltage: –0.5V to +7.0V; (2)DC Input Voltage: –0.5V to VDD+0.5V; (3)Storage Temperature: –65 to +150℃; (4)Max. Soldering Temperature (10 sec): 260℃; (5)Junction Temperature: 150℃; (6)Static Discharge Voltage: >2000V.

Features

CY2071AF features: (1)Single phase-locked loop architecture; (2)EPROM programmability; (3)Factory-programmable (CY2071A, CY2071AI) or field-programmable (CY2071AF, CY2071AFI) device options; (4)Up to three configurable outputs; (5)Low-skew, low-jitter, high-accuracy outputs; (6)Internal loop filter; (7)Power management (OE); (8)Frequency select options; (9)Configurable 5V or 3.3V operation; (10)8-pin 150-mil SOIC package.

Diagrams

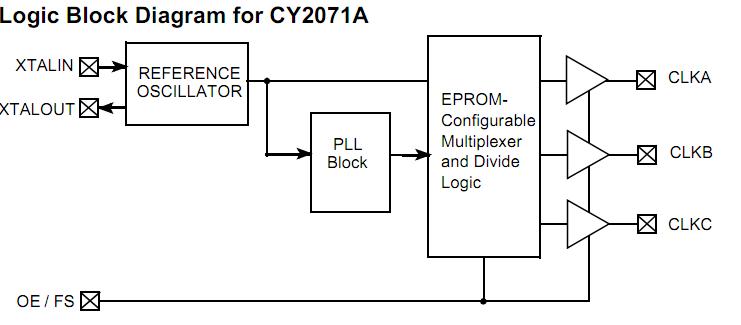

CY2071AF block diagram
