Product Summary

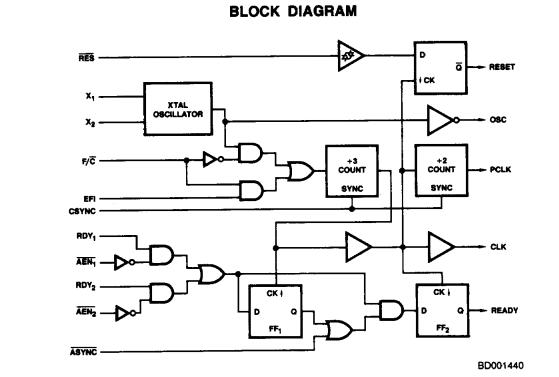

The D8284A is a single chip clock generator/driver for the 8086, 8088 processors. The chip contains a crystal-controlled oscillator, a divide-by-three counter, complete multibus ready synchronization and reset logic.
Parametrics
D8284A absolute maximum ratings: (1)storage temperature: -65 to 150℃; (2)ambient temeprature with powers: 0 to 70℃; (3)all output and supply voltages: -0.5 to 7.0V; (4)power dissipation: 1W.
Features
D8284A features: (1)generates the system clock for the 8086, 8088 processors; (2)uses a crystal or a TTL signal for frequency source; (3)porvides local ready and multibus ready synchronization; (4)generates system reset output form schmitt trigger input; (5)capable of clock synchronization with other 8284As.
