Product Summary
The FMS6413CSX is a single channel video driver with intergrated filter and clamp. The FMS6413CSX offers comprehensive video filtering for set top box or DVD applications. The The FMS6413CSX consists of a 4th order video Low Pass filter for video filtering. Applications of the The FMS6413CSX include: CCTV, DVD players, televisions, HDTV, Personal Video Recorders (PVRs) , Video On Demand (VOD) and Cable and Satellite Set top boxes.
Parametrics
FMS6413CSX absolute maximum ratings: (1) VCC_VIDEO (Positive DC Supply Voltage: +6.5V; (2) Analog and Digital I/O GND-0.3, VCC +0.3V; (3) Output Current (Continuous) : 60mA; (4) Junction Temperature: +150°C; (5) Storage Temperature Range: -65 to +150°C; (6) Lead Temperature (Soldering, 10s) : 260°C; (7) Thermal Resistance (θJA) : 115°C/W.
Features
FMS6413CSX features: (1) Integrated Video Low Pass reconstruction filter; (2) Integrated output driver provides a low impedance output and delivers 2Vp-p (6dB gain) composite video into 150Ω;(3) 7.1MHz 4th order video filter; (4) 0.4% differential gain with 0.4° differential phase; (5) Integrated DC Restore / Clamp Circuitry.

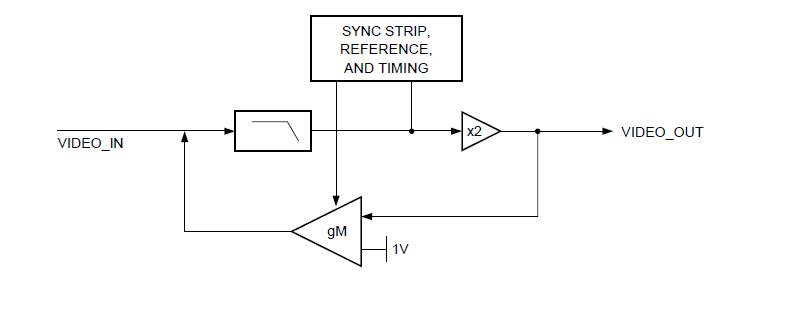

Diagrams
