Product Summary

The FR2S1015 is a DYAD dry reed switch. It is ideally suited for small switching signal applications. This switch FR2S1015 has sputtered ruthenium contacts and an extraordinary seal strength, achieved by a patented laser sealing of the glass. in low level or dry switching environments, both switches typically provide >1 billion operations. The FR2S1015 has hermetically sealed contacts and offer a wide range of available magnetic sensitivities. The applications of the device are (1)Security; (2)Proximity sensing; (3)Smoke alarms; (4)Automotive; (5)Level sensor; (6)Lamp current sensor; (7)Relays.

Parametrics

FR2S1015 absolute maximum ratings: (1)Switching Voltage: 200 Volts; (2)Switching Current: 0.5 Amps; (3)Carry Current: 1.5 Amps; (4)Switching Frequency: 500 Hz; (5)Contact Resistance: 150 mΩ.

Features

FR2S1015 features: (1)Small size; (2)SMT-compatible; (3)Easily formed leads; (4)Sputtered ruthenium contacts; (5)Hermetically sealed contacts; (6)Fast switching speed - up to 500Hz; (7)Wide range of available magnetic sensitivities.

Diagrams

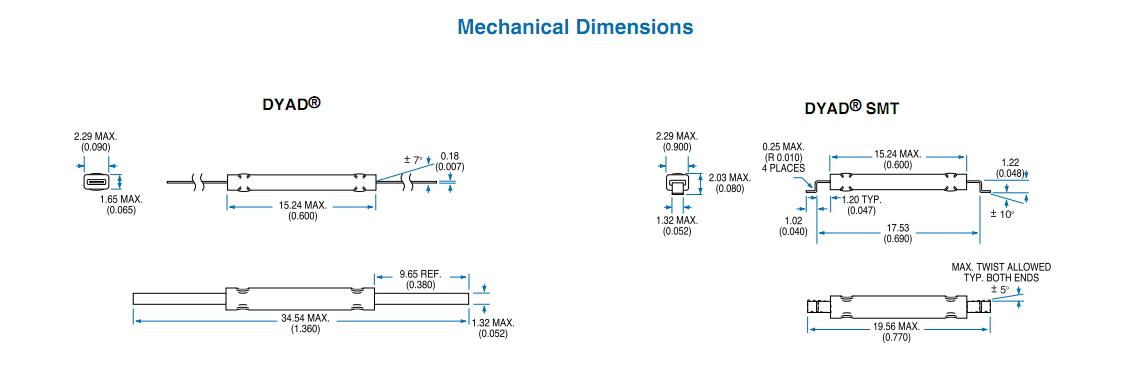

FR2S1015 block diagram
