Product Summary

The HFA1412IBZ is a quad closed loop Buffer featuring user programmable gain and high speed video performance. The applications of the device are (1)Video Distribution Amps; (2)Flash A/D Drivers; (3)Video Cable Drivers; (4)Video Switchers and Routers; (5)Medical Imaging Systems; (6)RGB Video Processing; (7)High Speed Oscilloscopes and Analyzers.

Parametrics

HFA1412IBZ absolute maximum ratings: (1)Voltage Between V+ and V-: 11V; (2)DC Input Voltage: VSUPPLY; (3)Output Current: Short Circuit Protected; (4)ESD Rating; (5)Human Body Model (Per MIL-STD-883 Method 3015.7): 600V.

Features

HFA1412IBZ features: (1)User Programmable For Closed-Loop Gains of +1, -1 or +2 Without Use of External Resistors; (2)Wide -3dB Bandwidth: 350MHz ; (3)Low Supply Current: 6mA/Buffer; (4)Excellent Gain Flatness (to 100MHz): ±0.08dB; (5)Low Differential Gain and Phase: 0.03%/0.02 Degree; (6)Very Fast Slew Rate: 1650V/μs; (7)Fast Settling Time (0.1%): 28ns ; (8)High Output Current: 55mA ; (9)Excellent Gain Accuracy: 0.99V/V ; (10)Overdrive Recovery: <10ns; (11)Standard Operational Amplifier Pinout; (12)Pb-Free Plus Anneal Available (RoHS Compliant).

Diagrams

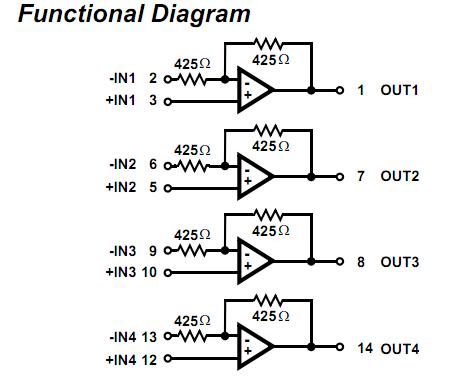

HFA1412IBZ functional diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

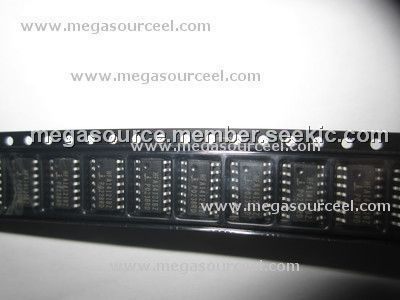

HFA1412IBZ
HFA1412IBZ

IC BUFFER QUAD 350MHZ LP 14-SOIC
Data Sheet
0-1: $11.33
1-25: $8.58
