Product Summary

The HI5812JIP is a fast, low power, 12-bit, successive approximation analog-to-digital converter. It can operate from a single 3V to 6V supply and typically draws just 1.9mA when operating at 5V. The HI5812JIP features a built-in track and hold. The conversion time is as low as 20μs with a 5V supply. The twelve data outputs feature full high speed CMOS three-state bus driver capability, and are latched and held through a full conversion cycle. The applications of the HI5812JIP are Remote Low Power Data Acquisition Systems, Digital Audio, DSP Modems, General Purpose DSP Front End, μP Controlled Measurement System, Professional Audio Positioner/Fader.

Parametrics

HI5812JIP absolute maximum ratings: (1)Supply Voltage:VDD to VSS:(VSS -0.5V) < VDD < +6.5V, VAA+ to VAA-:(VSS -0.5V) to (VSS +6.5V), VAA+ to VDD:±0.3V; (2)Analog and Reference Inputs: VIN, VREF+, VREF-:(VSS -0.3V) < VINA < (VDD +0.3V); (3)Digital I/O Pins:(VSS -0.3V) < VI/O < (VDD +0.3V).

Features

HI5812JIP features: (1)Conversion Time:20μs; (2)Throughput Rate:50 kSPS; (3)Built-In Track and Hold; (4)Guaranteed No Missing Codes Over Temperature; (5)Single Supply Voltage:+5V; (6)Maximum Power Consumption:25mW; (7)Internal or External Clock; (8)Pb-Free Available (RoHS Compliant).

Diagrams

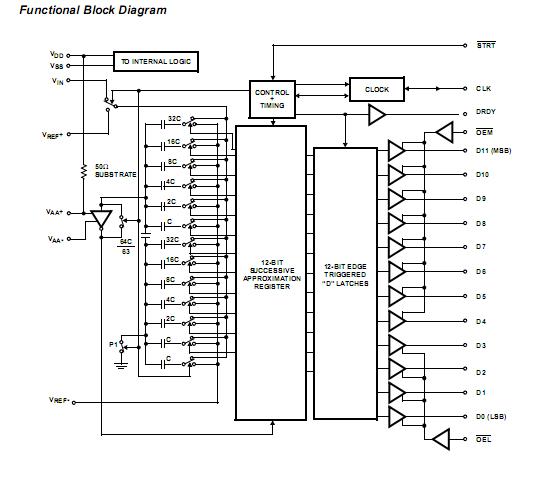

HI5812JIP functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

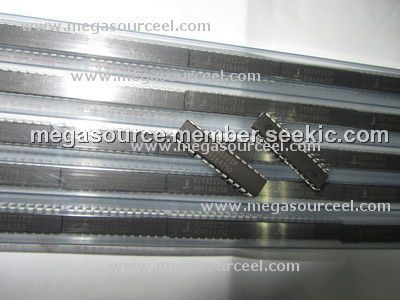

HI5812JIP
HI5812JIP


ADC 12BIT 50KSPS 1.5LSB 24-DIP

Data Sheet

Negotiable
HI5812JIPZ
HI5812JIPZ


IC ADC 12BIT 50KSPS LP HS 24DIP

Data Sheet

Negotiable
