Product Summary
The HT1086-33 is a three-terminal high current low voltage regulator. The device can deliver an output current of 1.5A and can accept input voltages up to 12V. The HT1086-33 is available in both adjustable and fixed output voltage type with a range of 1.8V to 5V. Internal current limit and thermal protection circuits provide protection against overload conditions that could create excessive junction temperatures.. The applications of the HT1086-33 are (1)Active SCSI terminations; (2)Post regulator for switching power supplies; (3)Low voltage microcontrollers; (4)Motherboard clock supplies; (5)Battery chargers.
Parametrics
HT1086-33 absolute maximum ratings: (1)Input Supply Voltage: VSS-0.3V to VSS+13V; (2)Storage Temperature: -50 to 125℃; (3)Input Supply Voltage: VSS-0.3V to VSS+12V; (4)Ambient Temperature: -40 to 85℃.
Features
HT1086-33 features: (1)Output voltage ranges: Fixed range of 1.8V, 2.5V, 2.85V, 3.3V, 5.0V or adjustable type; (2)High accuracy: 2%; (3)Low voltage drop: 1.3V (typ.), VOUT=5.0V at 1.5A; (4)Guaranteed output current: 1.5A; (5)Low quiescent current: 8mA (typ.); (6)Integrated current limit & thermal protection circuits; (7)SOT-223, TO-220, TO-252, TO-263 packages.

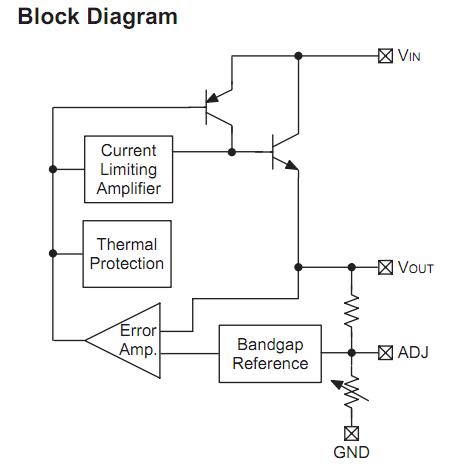

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HT1086-33 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||
