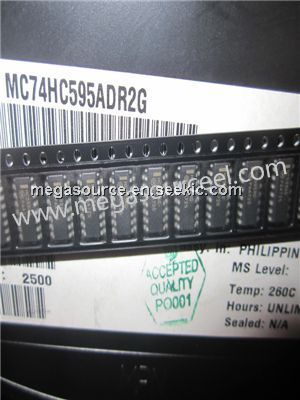

MC74HC595ADR2G

shift register, 2.0 to 6.0V, 7A, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.09~0.12 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2 :	0.12 / Piece
2 ~ 2500 :	0.09 / Piece

PartNumber:: MC74HC595ADR2G

Brand:: ON Semiconductor - ON | Pack: SOIC | D/C: 07+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. hellen's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-14

From Other Seller

Part Number:MC74HC595ADR2G
US $0.09 - 0.12
Quantity:

piece

Product Summary

The MC74HC595ADR2G is an 8-bit serial-input/serial or parallel-output shift register with latched 3-state outputs. The MC74HC595ADR2G accepts serial data and provides a serial output. The MC74HC595ADR2G has an asynchronous reset for the shift register.

Parametrics

MC74HC595ADR2G absolute maximum ratings: (1) DC supply voltage (Referenced to GND) Vcc: -0.5 to +7.0V; (2) DC input voltage (Referenced to GND) Vin: -0.5 to Vcc to +0.5V; (3) DC input voltage (Referenced to GND) : 0.5 to Vcc to +0.5V; (4) DC Input voltage current, per PIN: ±20mA; (5) DC Input voltage current, per PIN: ±35mA; (6) DC supply current, Vcc and GND Pins: ±75mA; (7) Storage temperature: -65 to +150 ℃; (8) Lead temperature, 1mm from case for 10 seconds: 260℃.

Features

MC74HC595ADR2G features: (1) Output Drive Capability: 15 LSTTL Loads; (2) Outputs Directly Interface to CMOS, NMOS, and TTL; (3) Operating Voltage Range: 2.0 to 6.0 V; (4) Low Input Current: 1.0μA; (5) High Noise Immunity Characteristic of CMOS Devices; (6) In Compliance with the Requirements Defined by JEDEC; (7) Standard No. 7A; (8) Chip Complexity: 328 FETs or 82 Equivalent GateS; (9)Improvements over HC595; (10) Improved Propagation Delays; (11) 50% Lower Quiescent Power; (12)Improved Input Noise and Latchup Immunity; (13) Pb-Free Packages are Available.
