Product Summary
The MT9172AP is a multi-function device capable of providing high speed, full duplex digital transmission up to 160 kbit/s over a twisted wire pair. The MT9172AP uses adaptive echo-cancelling techniques and transfer data in (2B+D) format compatible to the ISDN basic rate. Several modes of operation allow an easy interface to digital telecommunication networks including use as a high speed limited distance modem with data rates up to 160 kbit/s. The MT9172AP functions identically but with the DSIC having a shorter maximum loop reach specication. The applications of the MT9172AP include Digital subscriber lines, High speed data transmission over twisted wires, Digital PABX line cards and telephone sets and 80 or 160 kbit/s single chip modem.
Parametrics
MT9172AP absolute maximum ratings: (1)Supply Voltage, VDD: -0.3 to 7 V; (2)Voltage on any pin (other than supply), VMax: -0.3 to VDD+0.3 V; (3)Current on any pin (other than supply), IMax: 40 mA; (4)Storage Temperature, TST: -65 to +150℃; (5)Package Power Dissipation (Derate 16mW/℃ above 75℃), PDiss: 750 mW.
Features
MT9172AP features: (1)Full duplex transmission over a single twisted pair; (2)Selectable 80 or 160 kbit/s line rate; (3)Adaptive echo cancellation; (4)Up to 3km (9171) and 4 km (9172); (5)ISDN compatible (2B+D) data format; (6)Transparent modem capability; (7)Frame synchronization and clock extraction; (8)Zarlink ST-BUS compatible; (9)Low power (typically 50 mW), single 5V supply.

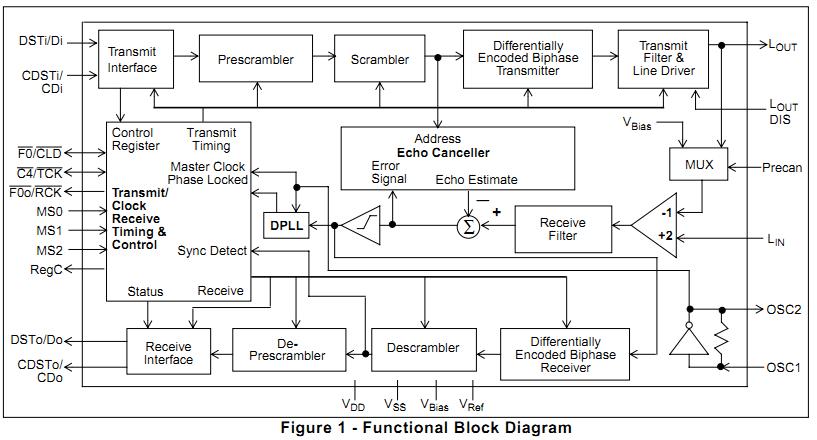

Diagrams
 |
