Product Summary
The PWR1308A is a 1.5 Watts Unregulated DC/DC Converter. The PWR1308A offers a broad line of low-cost, high-isolation voltage, unregulated, single and dual output DC/DC converters in a 24-pin DIP package. These small converters offer a 4000V isolation rating in a 1.25" × 0.8" package area. The applications of the PWR1308A are (1)biomedical data acquisition; (2)industrial process control; (3)analytical measurements; (4)ground loop elimination; (5)intrinsic safety systems.
Parametrics
PWR1308A absolute maximum ratings: (1)Rated Voltage: 4,000 VDC; (2)Test Voltage: 60 Hz, 60 Seconds 8,000 Vpk; (3)Resistance: 10 GΩ; (4)Capacitance: 10 pF.
Features
PWR1308A features: (1)rohs compliant; (2)high isolation - 4000v rating; (3)8000v isolation test voltage; (4)barrier 100% production tested; (5)low barrier capacitance - 10pf; (6)low leakage current - 2μa max; (7)24-pin dip package; (8)nternal filtering.

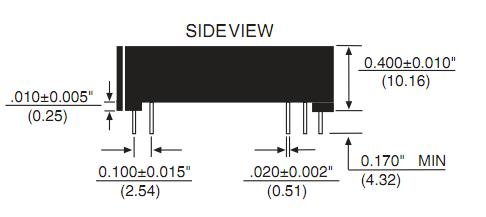

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PWR1308A |
Murata Power Solutions |
DC/DC Converters 1.5W SNGL OUT 12-15V |
Data Sheet |
Negotiable |
|
|||||||||||||
PWR1308AC |
Murata Power Solutions |
DC/DC Converters 12Vin 15Vout 100mA 24PIN DIP 1.5W Unreg |
Data Sheet |
|
|
