SL811HST-AXC

Product Summary

The SL811HST-AXC is an Embedded USB Host/Slave Controller capable of communicating in either full speed or low speed. The SL811HST-AXC interfaces to devices such as microprocessors, microcontrollers, DSPs, or directly to a variety of buses such as ISA, PCMCIA, and others. The SL811HS USB Host Controller conforms to USB Specification 1.1. The SL811HST-AXC incorporates USB Serial Interface functionality along with internal full or low speed transceivers. The SL811HST-AXC supports and operates in USB full speed mode at 12 Mbps, or in low speed mode at 1.5 Mbps. When in host mode, the SL811HST-AXC is the master and controls the USB bus and the devices that are connected to it.

Parametrics

SL811HST-AXC absolute maximum ratings: (1)Storage Temperature: –40 to 125℃; (2)Voltage on any pin with respect to ground: –0.3 V to 6.0 V; (3)Power Supply Voltage (VDD): 4.0 V; (4)Power Supply Voltage (VDD1): 4.0 V; (5)Lead Temperature (10 seconds): 180℃.

Features

SL811HST-AXC features: (1)market with a standard microprocessor bus interface; (2)Supports both full speed (12 Mbps) and low speed (1.5 Mbps) USB transfer in both master and slave modes; (3)Conforms to USB Specification 1.1 for full- and low speed; (4)Operates as a single USB host or slave under software control; (5)Automatic detection of either low- or full speed devices; (6)8-bit bidirectional data, port I/O (DMA supported in slave mode); (7)On-chip SIE asnd USB transceivers; (8)On-chip single root HUB support; (9)256-byte internal SRAM buffer; (10)Ping-pong buffers for improved performance; (11)Operates from 12 or 48 MHz crystal or oscillator (built-in DPLL); (12)5 V-tolerant interface; (13)Suspend/resume, wake up, and low-power modes are supported; (14)Auto-generation of SOF and CRC5/16; (15)Auto-address increment mode, saves memory READ/WRITE cycles; (16)Development kit including source code drivers is available; (17)3.3 V power source, 0.35 micron CMOS technology; (18)Available in 48-pin TQFP package.

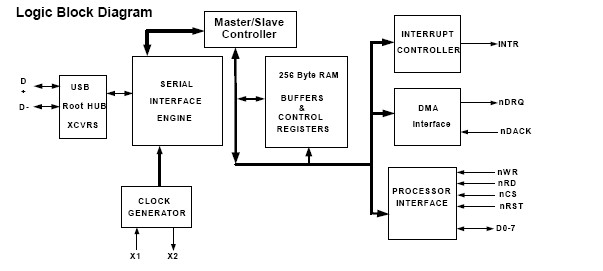

Diagrams
