TLC320AD50CPT

Product Summary

The TLC320AD50CPT is a kind of general-purpose analog interface circuit for V.34+ modem and business audio applications. The device provides high-resolution signal conversion from digital-to-analog (D/A) and from analog-to-digital (A/D) using oversampling sigma-delta technology. It includes a pair of 16-bit synchronous serial conversion paths (one for each direction) and includes an interpolation filter before the DAC and a decimation filter after the ADC. Other overhead functions on the chip include timing (sample rate, FSD delay) and control (programmable gain amplifier, PLL, communication protocol, etc.).

Parametrics

TLC320AD50CPT absolute maximum ratings: (1)Supply voltage range, DVDD, AVDD: -0.3 V to 7 V; (2)Output voltage range, DOUT, FS, SCLK, FLAG: -0.3 V to DVDD + 0.3 V; (3)Output voltage range, OUTP, OUTM: -0.3 V to VDD + 0.3 V; (4)Input voltage range, DIN, PWRDWN, RESET, ALTDATA, MCLK, FC: -0.3 V to DVDD + 0.3 V; (5)Input voltage range, INP, INM, AUXP, AUXM: -0.3 V to VDD + 0.3 V; (6)Case temperature for 10 seconds: DW package: 260℃; (7)Operating free-air temperature range, TA: 0 to 70℃; (8)Storage temperature range, Tstg: -65 to 150℃.

Features

TLC320AD50CPT features: (1)General-purpose analog interface circuit for V.34+ modem and business audio applications; (2)16-bit oversampling sigma-delta ADC and DAC; (3)Serial port interface; (4)Typical 89-dB SNR (signal-to-noise ratio) for ADC and DAC; (5)Typical 90-dB THD (signal to total harmonic distortion) for ADC and DAC; (6)Typical 88-dB dynamic range; (7)Test mode that includes a digital loopback test and analog loopback test; (8)Programmable A/D and D/A conversion rate; (9)Programmable input and output gain control; (10)Maximum conversion rate: 22.05 kHz; (11)Single 5-V power supply voltage or 5-V analog and 3-V digital power supply voltage; (12)Power dissipation (PD) of 120 mW rms typical in the operating mode; (13)Hardware power-down mode to 7.5 mW; (14)Internal reference voltage (Vref); (15)Differential architecture throughout device; (16)TLC320AD50C/I can support up to three slave devices; TLC320AD52C can support one slave; (17)2s complement data format; (18)ALTDATA terminal provides data monitoring; (19)Monitor amplifier to monitor input signals; (20)On-chip phase locked loop (PLL).

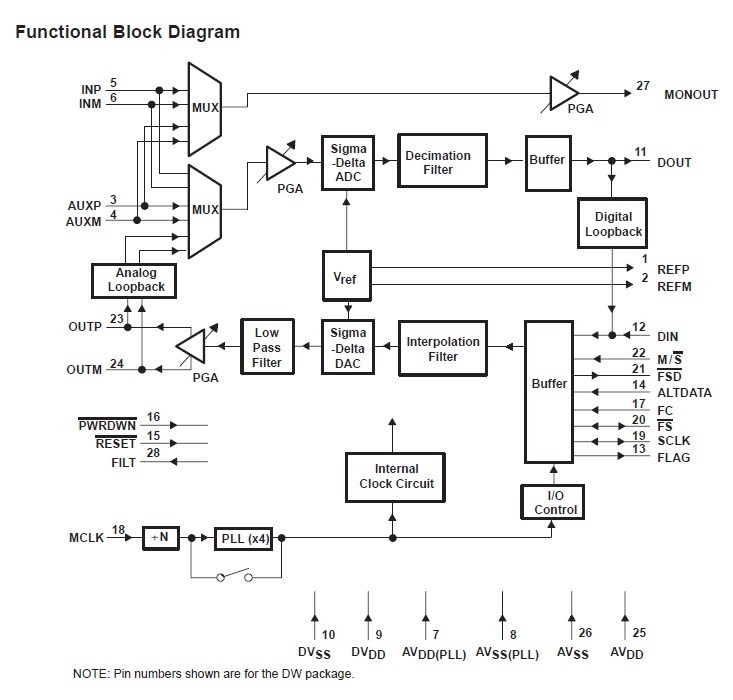

Diagrams
