TLE6250

monolithic integrated circuit, SOP, -0.3 to 6.5 V, Excellent EMC performance, Overtemperature protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.33~1.07 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.33~1.07

PartNumber:: TLE6250

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. hellen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-27

From Other Seller

Part Number:TLE6250
US $0.33 - 1.07
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

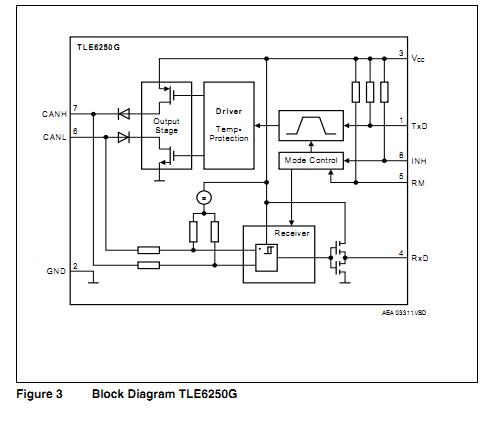

The TLE6250 is a monolithic integrated circuit that is available as bare die as well as in a PG-DSO-8 package. The TLE6250 is optimized for high speed differential mode data transmission in automotive and industrial applications and it is compatible to ISO/DIS 11898. The TLE6250 work as an interface between the CAN protocol controller and the physical differential bus in both, 12 V and 24 V systems.

Parametrics

TLE6250 absolute maximum ratings: (1)Supply voltage, VCC: -0.3 to 6.5 V; (2)CAN input voltage (CANH, CANL), VCANH/L: -40 to 40 V; (3)Logic voltages at INH, RM, TxD, RxD, VI: -0.3 to VCC when 0 V < VCC < 5.5 V; (4)Electrostatic discharge voltage at CANH, CANL, VESD: -6 to 6 kV when human body model (100 pF via 1.5 kΩ); (5)Electrostatic discharge voltage, VESD: -2 to 2 kV when human body model (100 pF via 1.5 kΩ); (6)Junction temperature, Tj: -40 to 160℃.

Features

TLE6250 features: (1)CAN data transmission rate up to 1 MBaud; (2)Receive-only Mode and Stand-by Mode; (3)Suitable for 12 V and 24 V applications; (4)Excellent EMC performance (very high immunity and very low emission); (5)Version for 5 V and 3.3 V microcontrollers; (6)Bus pins are short circuit proof to ground and battery voltage; (7)Overtemperature protection; (8)Very wide temperature range (-40℃ up to 150℃); (9)Green Product (RoHS compliant); (10)AEC Qualified.
