Product Summary
The WM9708SCDS is a high-quality stereo audio codec compliant with the AC97 Revision 2.1 specification. It performs full duplex 18-bit codec functions and supports variable sample rates from 8 to 48k samples/s and offers excellent quality with high SNR. Additional features include 3D sound enhancement, line-level outputs, and hardware sample rate conversion. The WM9708SCDS is fully operable on 3.3V or 5V or mixed 3.3/5V supplies, and is packaged in a 28-pin SSOP package.
Parametrics
WM9708SCDS absolute maximum ratings: (1)Digital supply voltage -0.3V +7V; (2)Analogue supply voltage -0.3V +7V; (3)Voltage range digital inputs DVSS -0.3V DVDD +0.3V; (4)Voltage range analogue inputs AVDD -0.3V AVDD +0.3V; (5)Operating temperature range, TA 0 +70℃; (6)Storage prior to soldering 30℃ max / 85% RH max; (7)Storage temperature after soldering -65 +150℃; (8)Package body temperature (soldering 10 seconds) +240℃; (9)Package body temperature (soldering 2 minutes) +183℃.
Features
WM9708SCDS features: (1)18-bit stereo codec; (2)S/N ratio > 95dB; (3)Multiple stereo input mixer; (4)Mono and stereo volume control; (5)Power management features; (6)Very low standby power; (7)Variable rate audio (VRA) support; (8)Analogue 3D stereo enhancement; (9)Line level outputs; (10)Supports Rev. 2.1 specified audio and modem sample rates and filtering; (11)PC-beep connection when device held reset; (12)3.3V or 5V operation; (13)28-pin SSOP package.

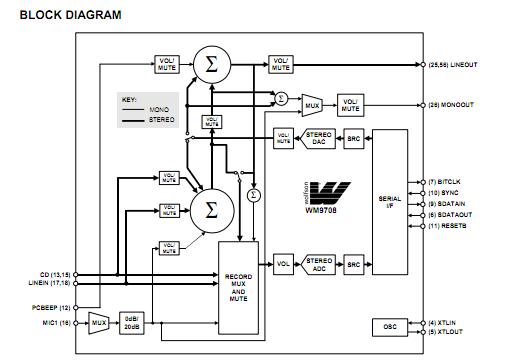

Diagrams
