Product Summary

The WSC000251R00JTA is a Wirewound Resistor.

Parametrics

WSC000251R00JTA absolute maximum ratings: (1)Temperature Coefficient ppm/℃ 0.1 Ω - 0.99 Ω = ± 90; 1.0 Ω - 4.99 Ω = ± 50; (2)Dielectric Withstanding Voltage VAC > 500; (3)Insulation Resistance Ω > 109; (4)Operating Temperature Range ℃ - 65/+ 175; (5)Maximum Working Vol tage V(P x R)1/2; (6)Weight/1000 pieces (typical) g 90.

Features

WSC000251R00JTA features: (1)All welded construction; (2)Molded encapsulation; (3)Wrap around terminations; (4)Solderable termination; (5)Excellent stability at different environmental conditions; (6)High power ratings; (7)Superior surge capability; (8)Available in non-inductive styles with Aryton-Perry winding (WSN in lieu of WSC, maximum resistance is one-half WSC range); (9)Lead (Pb)-free version is RoHS compliant.

Diagrams

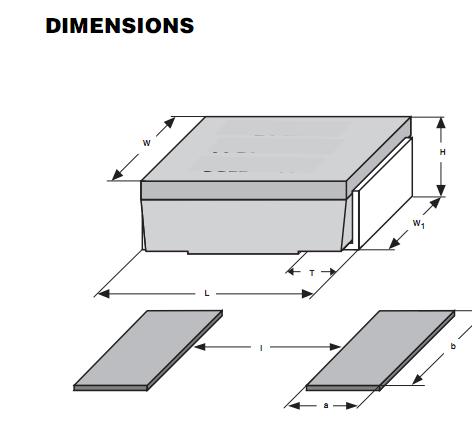

WSC000251R00JTA dimensions
