Product Summary

The XC912DG128CPV8 microcontroller unit (MCU) is a 16-bit device composed of standard on-chip peripherals including a 16-bit central processing unit (CPU12), 128K bytes of flash EEPROM, 8K bytes of RAM, 2K bytes of EEPROM, two asynchronous serial communications interfaces (SCI), a serial peripheral interface (SPI), an inter-IC interface (I2C), an enhanced capture timer (ECT), two 8-channel, 10-bit analog-to-digital converters (ADC), a four-channel pulse-width modulator (PWM), and two CAN 2.0 A, B software compatible modules (MSCAN12).

Parametrics

XC912DG128CPV8 absolute maximum ratings: (1)Supply voltage: -0.3 to +6.5 V; (2)Input voltage: -0.3 to +6.5 V; (3)Operating temperature range: 0 to +70 ℃; (4)Storage temperature range: -55 to +150 ℃; (5)Current drain per pin Excluding VDD and VSS: ±25 mA; (6)VDD differential voltage: 6.5 V.

Features

XC912DG128CPV8 features: (1)16-bit CPU12: Upward compatible with M68HC11 instruction set, Interrupt stacking and programmer’s model identical to M68HC11, 20-bit ALU, Instruction queue, Enhanced indexed addressing; (2)Multiplexed bus: Single chip or expanded, 16 address/16 data wide or 16 address/8 data narrow modes; (3)Memory: 128K byte flash EEPROM, made of four 32K byte modules with 8K bytes protected BOOT section in each module, 2K byte EEPROM, 8K byte RAM, made of two 4K byte modules with Vstby in each module.

Diagrams

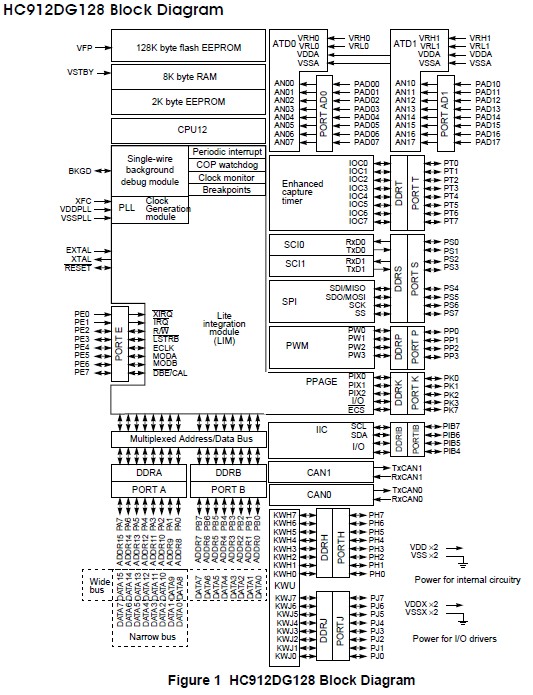

XC912DG128CPV8 block diagram
