ZXFV4089N8TA

video amplifier, +/-5V, 8mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2 :	1.30 / Piece
2 ~ 1000 :	1.00 / Piece

PartNumber:: ZXFV4089N8TA

Brand:: Diodes Incorporated - Diodes | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. hellen's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-31

From Other Seller

Part Number:ZXFV4089N8TA
US $1.00 - 1.30
Quantity:

piece

Product Summary

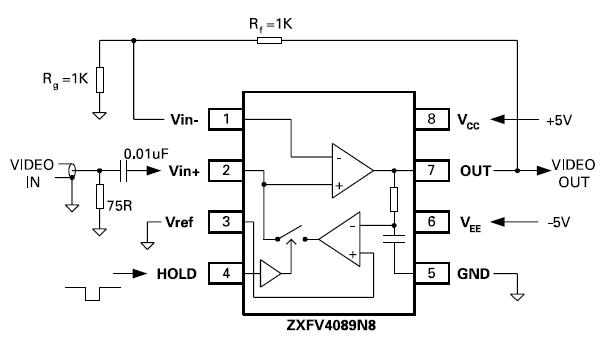

The ZXFV4089N8TA is DC restoring circuit and low-distortion video amplifier. The ZXFV4089N8TA is specially designed to provide brightness level stability as a "black-level clamp" in video systems with very low distortion and low power consumption. Applications of the ZXFV4089N8TA include: Black Level Clamp, providing stable intensity in video systems such as cameras, image capture, video mixing, displays and DC restoration of other high frequency signals.

Parametrics

ZXFV4089N8TA absolute maximum ratings: (1) Positive Supply voltage VCC to GND: -0.5V to +5.5V; (2) Negative Supply Voltage VEE to GND: -5.5V to +0.5V; (3) Input voltage, pins 1,2,3 to GND: VEE -0.5V to VCC +0.5V; (4) Output current, pin 7: 60mA; (5) Current into Vin and HOLD, pins 2 & 4: 5mA; (6) Operating Temperature Range: -40°C to +85°C Storage -65°C to +150°C; (7) Operating Ambient Junction temperature TJMAX: 150°C.

Features

ZXFV4089N8TA features: (1) Various TV systems, PAL, NTSC, SECAM; (2) Buffered output using high quality video amplifier; (3) Gain is set using two external resistors; (4) On chip sample/hold capacitor; (5) 300 MHz bandwidth; (6) 0.02% differential gain; (7) 0.02° differential phase; (8) +/-5V supply operation; (9) 8 mA supply current; (10) Pin and function compatible with industry standard part.
