BGA2709

MMIC wideband amplifier, 350mA, 200mW, 6V, SOT363

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.08~0.27 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	0.27 / Piece
101 ~ 1000 :	0.16 / Piece
1001 ~ 2000 :	0.08 / Piece

PartNumber:: BGA2709

Brand:: NXP Semiconductors - nxp | Pack: | D/C: 11+

Availability:: Supply Ability: 2000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. hellen's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-26

From Other Seller

Part Number:BGA2709
US $0.08 - 0.27
Quantity:

piece

Product Summary

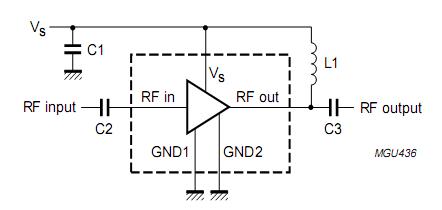

The bga2709 is a MMIC wideband amplifier. The bga2709 is with internal matching circuit in a 6-pin SOT363 SMD plastic package. Applications of the bga2709 include: Cable systems, LNB IF amplifiers, General purpose and ISM.

Parametrics

bga2709 absolute maximum ratings: (1) DC supply voltage Vs: 6V (RF input AC coupled) ; (2) supply current IS: 35mA; (3) total power dissipation Ptot: 200mW (Ts≤90°C) ; (4) storage temperature Tstg: -65 to 150°C; (5) operating junction temperature Tj: 150°C; (6) maximum drive power PD: 10dBm.

Features

bga2709 features: (1) Internally matched to 50Ω; (2) Very wide frequency range (3.6GHz at 3dB bandwidth) ; (3) Flat 23dB gain (DC to 2.6GHz at 1dB flatness) ; (4) 12.5dBm saturated output power at 1GHz; (5) High linearity (22dBm OIP3 at 1GHz) ; (6) Unconditionally stable (K>1.2) .
