Product Summary
The bga2711 is a MMIC wideband amplifier. The bga2711 is with internal matching circuit in a 6-pin SOT363 SMD plastic package. Applications of the bga2711 include: Cable systems, LNB IF amplifiers, General purpose and ISM.
Parametrics
bga2711 absolute maximum ratings: (1) DC supply voltage Vs: 6V (RF input AC coupled) ; (2) supply current IS: 20mA; (3) total power dissipation Ptot: 200mW (Ts≤80°C) ; (4) storage temperature Tstg: -65 to 150°C; (5) operating junction temperature Tj: 150°C; (6) maximum drive power PD: 10dBm.
Features
bga2711 features: (1) Internally matched to 50Ω; (2) Very wide frequency range; (3) Very flat gain; (4) Unconditionally stable.

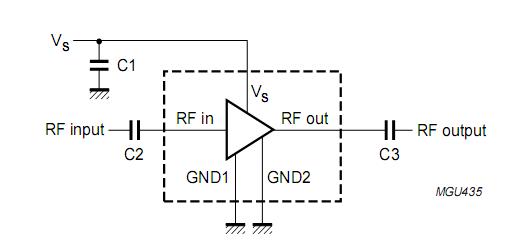

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BGA2711,115 |
NXP Semiconductors |
RF Amplifier TAPE-7 MMIC-RFS |
Data Sheet |
|
|
||||||||||||
|
BGA2711 T/R |
NXP Semiconductors |
RF Amplifier TAPE-7 MMIC-RFS |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BGA2711 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
