Product Summary
The bgx885n is an 860MHz, 17dB gain push-pull amplifier. The bgx885n is a hybrid amplifier module designed for CATV/MATV systems operating over a frequency rangeof 40 to 860MHz at a voltage supply of 24V (DC) .
Parametrics
bgx885n absolute maximum ratings: (1) DC supply voltage VB: 26V; (2) RF input voltage Vi: 65dBmV; (3) storage temperature Tstg: -40 to +100°C; (4) operating mounting base temperature Tmb: -20 to +100°C.
Features
bgx885n features: (1) Excellent linearity; (2) Extremely low noise; (3) Silicon nitride passivation; (4) Rugged construction; (5) Gold metallization ensures excellent reliability.

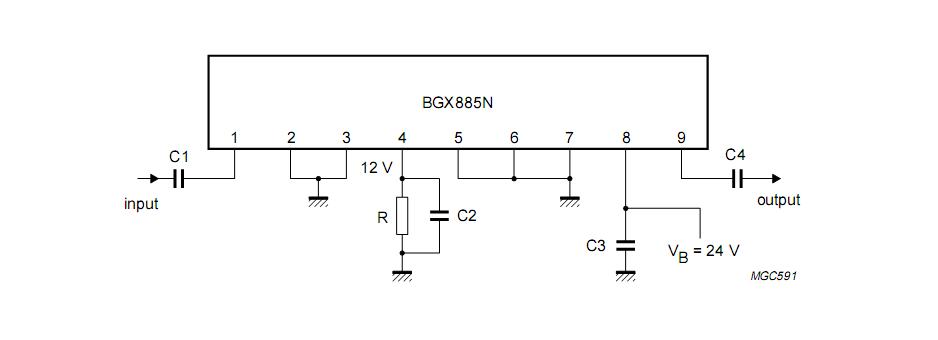

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BGX885N |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
BGX885N,112 |
NXP Semiconductors |
RF Amplifier 860MHZ 17DB GAIN PUSH-PULL AMPLIFIER |
Data Sheet |
|
|
||||||||||
