Product Summary

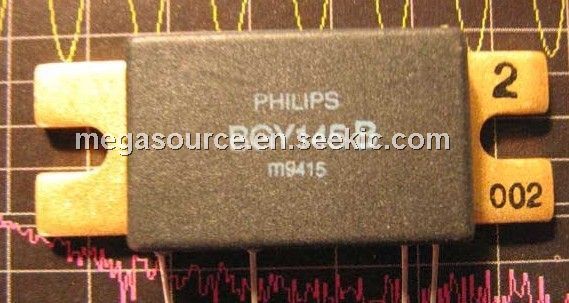

The bgy145a is a VHF power amplifier module. The bgy145a is designed for use in transmitters of mobile communications equipment powered by vehicles with 12.5V battery suppliers. The bgy145a is a two-stage transistor amplifier and consists of two RF npn transistors mounted on a ceramic substrate, togather with surface mounted components that make up the matching and bias circuits.

Parametrics

bgy145a absolute maximum ratings: (1) DC supply voltage VS1, VS2: 15V; (2) RF input terminal voltage ±Vi: 25V; (3) RF output terminal voltage ±Vo: 25V; (4) RF input power: 300mW; (5) RF output power PL: 40W; (6) Storage temperature range Tstg: -30 to 100°C; (7) heatsink operating temperature: 90°C.

Features

bgy145a characteristics: (1) quiescent current IQ1: 10 to 25mA (PD=0) ; (2) quiescent current IQ2: 35mA (PD=0) ; (3) RF output current power: 29W (PD=150mW) ; (4) RF power gain: 22.9dB; (5) efficieny n: 37% (PL=29W) .

Diagrams

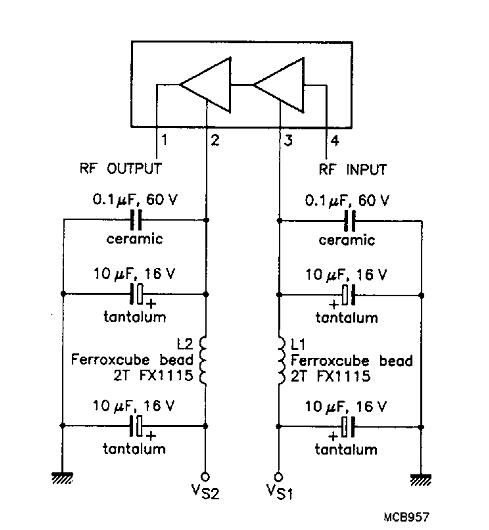

bgy145a circuit
