Product Summary
The mhw720a2 is a Hybrid Module-Motorola Module designed specifically for up to 860 MHz CATV systems as amplifiers in trunk and line extender applications. The mhw720a2 features ion–implanted, arsenic emitter transistors and an all gold metallization system.
Parametrics
mhw720a2 absolute maximum ratings: (1)DC Supply Voltage VCC: +28 Vdc; (2)RF Input Voltage (Single Tone) Vin: +70 dBmV; (3)Operating Case Temperature Range TC: -20 to +100 ℃; (4)Storage Temperature Range Tstg: -40 to +100 ℃.
Features
mhw720a2 features: (1)Specified for 110/128-Channel Performance; (2)Broadband Power Gain-@ f = 40 to 860 MHz, Gp = 22 dB Typ @ 750 and 860 MHz; (3)Broadband Noise Figure, NF = 5.5 dB Typ-MHW7222; NF = 6.4 dB Typ - MHW8222; (4)Superior Gain, Return Loss and DC Current Stability with Temperature; (5)All Gold Metallization.

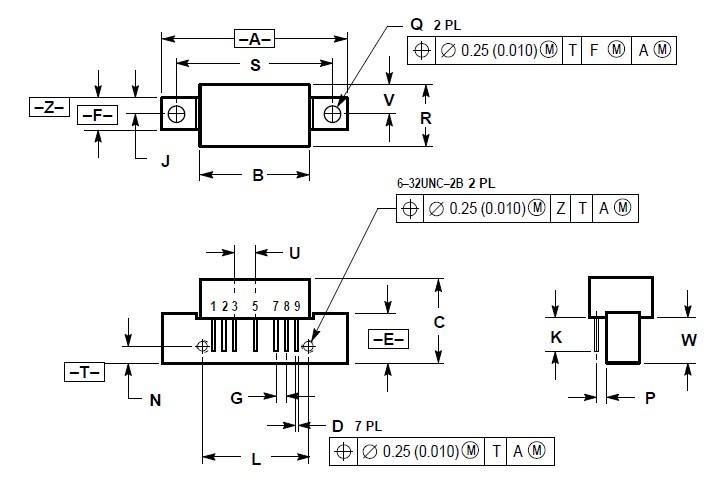

Diagrams
