Product Summary

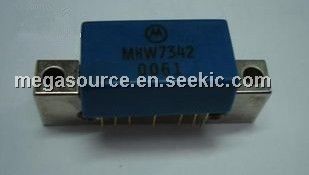

The mhw7342 is a CATV amplifier designed specifically for up to 860 MHz CATV systems as amplifiers in trunk and line extender applications. The mhw7342 features ion–implanted, arsenic emitter transistors and an all gold metallization system.
Parametrics
mhw7342 absolute maximum ratings: (1)DC Supply Voltage VCC: +28 Vdc; (2)RF Input Voltage (Single Tone) Vin: +70 dBmV; (3)Operating Case Temperature Range TC: -20 to +100 ℃; (4)Storage Temperature Range Tstg: -40 to +100 ℃.
Features
mhw7342 features: (1)Specified for 110/128-Channel Performance; (2)Broadband Power Gain-@ f = 40 to 860 MHz, Gp = 22 dB Typ @ 750 and 860 MHz; (3)Broadband Noise Figure, NF = 5.5 dB Typ-MHW7222; NF = 6.4 dB Typ - MHW8222; (4)Superior Gain, Return Loss and DC Current Stability with Temperature; (5)All Gold Metallization.

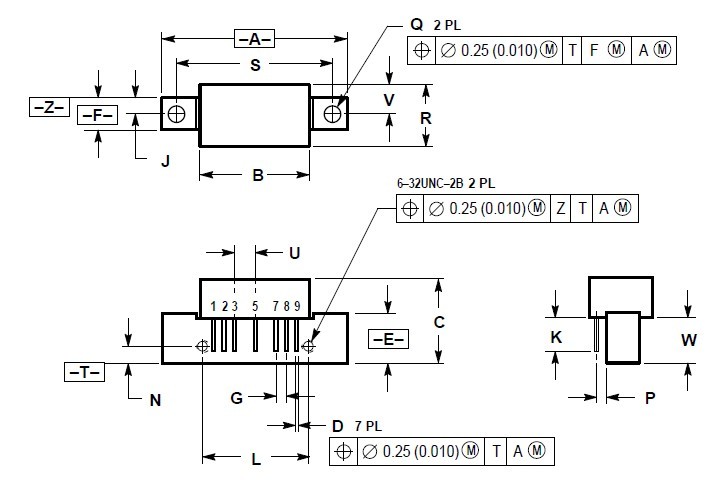

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MHW7342 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
