Product Summary

The mhwj707-1 is a low distortion wideband amplifier. It is designed specifically for broadband applications requiring low distortion characteristics. The mhwj707-1 is also specified for use as return amplifier for mid–split and high–split 2–way cable TV systems. Features all gold metallization system.

Parametrics

mhwj707-1 absolute maximum ratings: (1)RF Voltage Input (Single Tone) Vin: +65 dBmV; (2)DC Supply Voltage VCC: +28 Vdc; (3)Operating Case Temperature Range TC: –20 to +100 ℃; (4)Storage Temperature Range Tstg: –40 to +100 ℃.

Features

mhwj707-1 features: (1)Guaranteed Broadband Power Gain @ f = 5.0-200 MHz; (2)Guaranteed Broadband Noise Figure @ f = 5.0-175 MHz; (3)Superior Gain, Return Loss and DC Current Stability with Temperature; (4)All Gold Metallization; (5)All Ion-Implanted Arsenic Emitter Transistor Chips with 6.0 GHz fT; (6)Circuit Design Optimized for Good RF Stability Under High VSWR Load Conditions; (7)Transformers Designed to Insure Good Low Frequency Gain Stability versus Temperature.

Diagrams

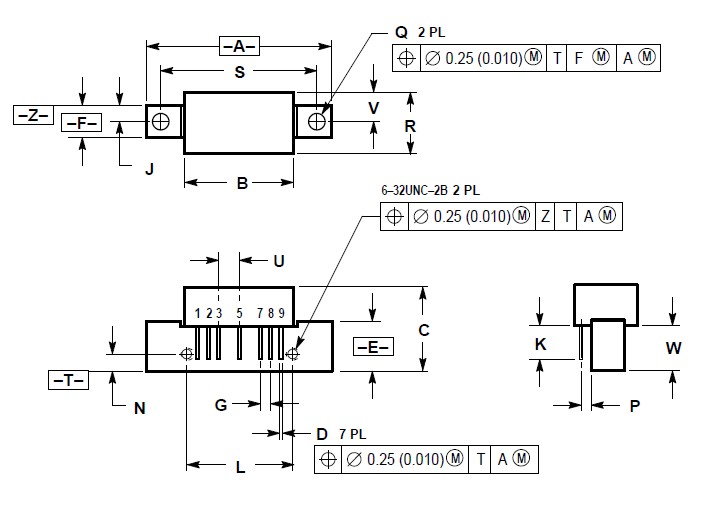

mhwj707-1 dimensions
