Product Summary

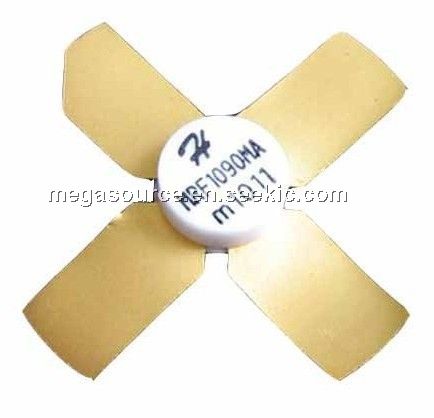

The mrf1090ma is a RF MOSFET. Designed primarily for wideband large–signal output and driver stages up to 200 MHz frequency range.
Parametrics
mrf1090ma absolute maximum ratings: (1)Drain-source voltage, VDSS: 65V; (2)Gate-source voltage, VGS: ±40V; (3)Drain current-continous, ID: 13A; (4)Total device disspation, PD: 270W; (5)Storage temperature range, TSTG: -65 to +150℃; (6)Operating junction temperature, TJ: 200℃.
Features
mrf1090ma features: (1)Guaranteed performance at 150 MHz, 28 Vdc, Output power = 125 W; Minimum gain = 9.0 dB; (2)Efficiency = 50% (min.); (3)Excellent thermal stability, ideally suited for Class A operation; (4)Facilitates manual gain control, ALC and modulation techniques; (5)100% tested for load mismatch at all phase angles with 30:1 VSWR; (6)Low noise figure - 3.0 dB typ. at 2.0 A, 150 MHz.
