Product Summary
The MRF235 is an NPN Silicon RF power transistor. It is designed for 12.5V, mid-band large signal amplifier applications in industrial and commercial FM equipment operation in the 40-100MHz range. Mid band FM transistors.
Parametrics
MRF235 absolute maximum ratings: (1)Collector–Emitter Voltage VCEO: 18 Vdc; (2)Collector–Base Voltage VCBO: 36 Vdc; (3)Emitter–Base Voltage VEBO: 4.0 Vdc; (4)Collector Current — Continuous IC: 8.0 Adc; (5)Total Device Dissipation @ TC = 25℃ PD: 130 Watts; (6)Storage Temperature Range Tstg: – 65 to 200 ℃.
Features
MRF235 features: (1)Specified 12.5V, 90MHz characteristics, Output Power: 50W, Minimum Gain: 8dB, Efficiency: 55%.

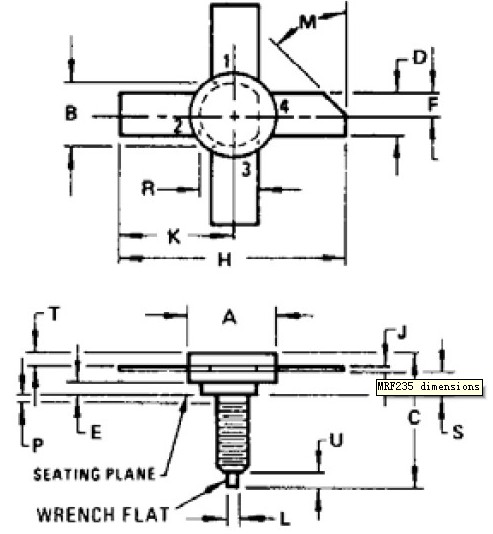

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF235 |
Other |
|
Data Sheet |
Negotiable |
|
||||
