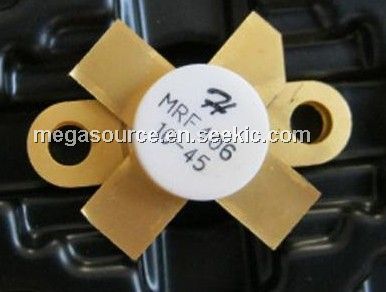

Product Summary

The MRF406 is an NPN silicon rf power transistor. It is designed for 12.5 V 30 MHz Power Amplifier Applications.

Parametrics

MRF406 absolute maximum ratings: (1)IC: 4.0 A; (2)VCB: 40 V; (3)VCE: 20 V; (4)PDISS: 80 W @ TC = 25 ℃; (5)TJ: -65 ℃ to +200 ℃; (6)TSTG: -65 ℃ to +150 ℃; (7)θJC: 2.2 ℃/W.

Features

MRF406 features: (1)Common Emitter; (2)Output Power = 20 W (PEP).

Diagrams

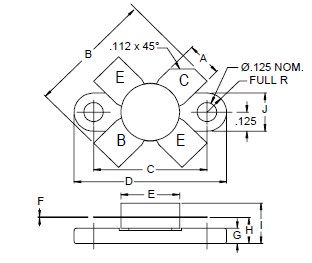

MRF406 dimensions
