LTM170ET01

LTM170ET01, color active matrix liquid crystal display, GND-0.5 to 6.5 V, 6.5mA, Module, Samsung

Rated 5 Rating 5 | reviews | Write a review

Price:: US $16.00~18.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	18.00 / Piece
51 ~ 100 :	17.00 / Piece
101 ~ 150 :	16.00 / Piece

PartNumber:: LTM170ET01

Brand:: samsung - samsung | D/C: 10+

Availability:: Supply Ability: 500/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. hellen's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2014-07-29

From Other Seller

Part Number:LTM170ET01
US $16.00 - 18.00
Quantity:

piece

Product Summary

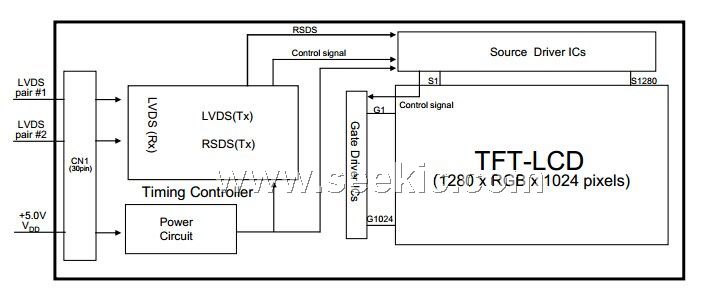

The LTM170ET01 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT (Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 17.0" is 1280 x 1024 and this model can display up to 16.7 millions colors. The applications of the LTM170ET01 include Workstation & desktop monitors; Display terminals for AV application products; Monitors for industrial machine.

Parametrics

LTM170ET01 absolute maximum ratings: (1)Power Supply Voltage, VDD: GND-0.5 to 6.5V; (2)Storage temperature, Tstg: -25 to 60℃; (3)Center of Glass surface temperature (Operation), Topr: 0 to 50℃; (4)Shock (non - operating), Snop: 50G; (5)Vibration (non - operating), Vnop: 1.5G.

Features

LTM170ET01 features: (1)High contrast ratio, high aperture structure; (2)Wide Viewing Angle; (3)High speed response; (4)SXGA (1280 x 1024 pixels) resolution; (5)Low power consumption; (6)2 CCFLs (Cold Cathode Fluorescent Lamp); (7)DE (Data Enable) only mode; (8)LVDS (Low Voltage Differential Signaling) interface (2pixel/clock); (9)Compact Size Design; (10)RoHS compliance; (11)TCO'''' 03 compliance.
