Product Summary

The m67711 is a 1240-1300MHz, 12.5V, 16W, FM mobile radio.

Parametrics

m67711 absolute maximum ratings: (1)supply voltage: 17V; (2)gate bias voltage: 10V; (3)input power: 2W; (4)output power: 20W; (5)operating case temperature: -30 to 110°C; (6)storage temperature: -40 to 110°C; (6)total current: 8A.

Features

m67711 features: (1)frequency range: 1240 to 1300MHz; (2)output power: 16W; (3)total efficiency: 28%; (4)2nd. harmonic: -45dbc; (5)input VSWR: 2.0.

Diagrams

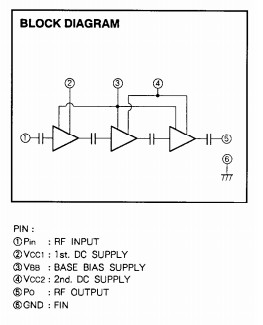

m67711 block diagram
