Product Summary

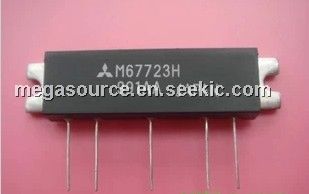

The m67723h is a 250-270MHz, 12.5V, 7W, FM portable radio.

Parametrics

m67723h absolute maximum ratings: (1)supply voltage: 16V; (2)gate bias voltage: 5.5V; (3)input power: 40mW; (4)output power: 10W; (5)operating case temperature: -30 to 110°C; (6)storage temperature: -40 to 110°C; (6)total current: 4A.

Features

m67723h features: (1)frequency range: 250 to 270MHz; (2)output power: 7W; (3)total efficiency: 40%; (4)2nd. harmonic: -20dbc; (5)3rd. harmonic: -30dbc; (6)input VSWR: 2.5.

Diagrams

m67723h block diagram
