Product Summary

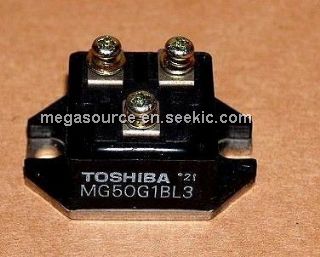

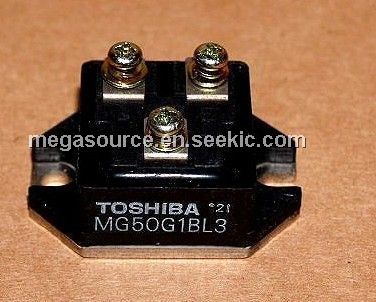

The mg50g1bl3 is a Darlington Half Bridge Power Module.

Parametrics

mg50g1bl3 absolute maximum ratings: (1)Isolated Case (Y/N): Yes; (2)Circuits Per Package: 1; (3)V(BR)CEO (V): 450; (4)V(BR)CBO (V): 600; (5)I(C) Max. (A): 50; (6)Absolute Max. Power Diss. (W): 300; (7)Maximum Operating Temp (℃): 150; (8)h(FE) Min. Current gain.: 100; (9)@I(C) (A) (Test Condition): 50; (10)@VCE (test): 5.0V(CE)sat Max. (V): 2.0; (11)@I(C) (A) (Test Condition): 50; (12)@I(B) (A) (Test Condition): 1.0; (13)t(f) Max. (s) Fall time.: 2.0u.

Features

mg50g1bl3 features: (1)The drain is isolated from case; (2)2 MOSFETs are built-in to 1 package; (3)With built-in free wheeling diode; (4)Low drain-source on resistance: RDS(ON)=0.14Ω; (5)Enhancement-mode.

Diagrams

mg50g1bl3 package dimensions
