Product Summary

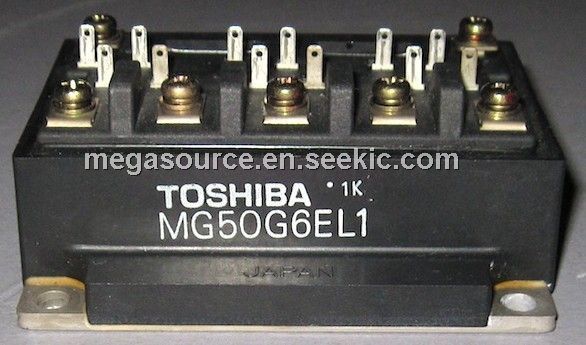

The mg50g6el1 is an IGBT module.

Parametrics

mg50g6el1 absolute maximum ratings: (1)Collector-base voltage: 600V; (2)Collector-emitter voltage: 600V; (3)Collector-emitter sustaining voltage: 450V; (4)Emitter-base voltage: 6V; (5)Collector current: 50A.

Features

mg50g6el1 features: (1)Collector cut-off current: 1mA; (2)Emitter cut-off current: 200mA; (3)Collector-emitter sustaining voltage: 450V; (4)DC current gain: 100; (5)Collector-emitter saturation voltage: 2V.

Diagrams

mg50g6el1 block diagram
