Product Summary

The mrf141g is a RF Power FET. It is designed for broadband commercial and military applications at frequencies to 175 MHz. The high power, high gain and broadband performance of the mrf141g is especially useful for FM broadcast or TV channel frequency band solid state transmitters and amplifiers.

Parametrics

mrf141g absolute maximum ratings: (1)drain-source voltage: 65 V; (2)drain-gate voltage: 65 V; (3)gate-source voltage: ±40 V; (4)drain current-continuous: 32 A; (5)total device dissipation @ Tc=25℃: 500 W, derate above 25℃: 2.85 W/℃; (6)storage temperature range: -65 to +150 ℃; (7)operating junction temperature: 200 ℃

Features

mrf141g features: (1)Guaranteed performance at 175MHz, 28V: Output power: 300W, Gain: 12dB (14dB Typ.), Efficiency: 50%; (2)Low thermal resistance: 0.35℃/W; (3)Ruggedness tested at rated output power; (4)Nitride passivated die for enhanced reliability.

Diagrams

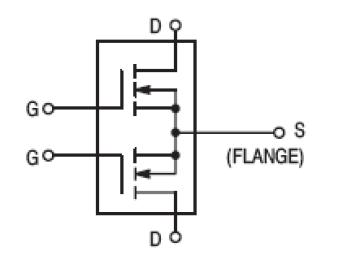

mrf141g pin connection
