Product Summary

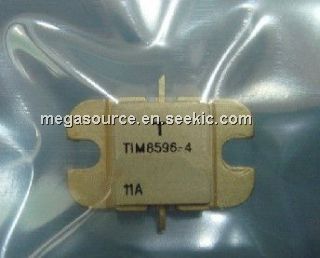

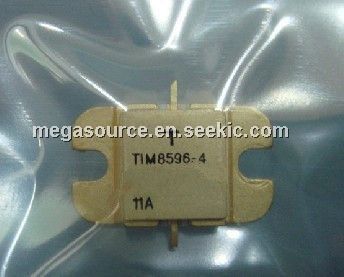

The tim8596-4 is a microwave power GAAS FET.
Parametrics
tim8596-4 absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 5.2A; (4)Total Power Dissipation (Tc= 25 °C)PT: 30W; (5)Channel Temperature Tch: 175°C; (6)Storage Temperature Tstg: -65 to +175°C.
Features
tim8596-4 features: (1)high power: p1db=36.5dbm at 8.5ghz to 9.6ghz; (2)broad band internally matched; (3)high gain: g1db=7.5db at 8.5ghz to 9.6ghz; (4)hermetically sealed package.

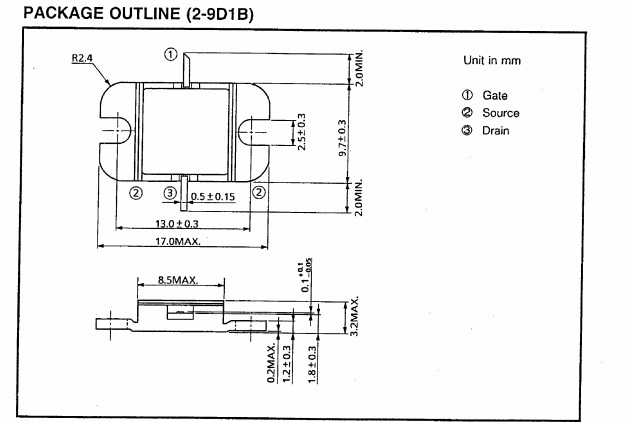

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIM8596-4 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
TIM825K015P0X |
Cornell Dubilier |
Tantalum Capacitors - Solid Leaded SOLID TANTALUM |
Data Sheet |
Negotiable |
|
||||
|
TIM825K035P0Y |
Cornell Dubilier |
Tantalum Capacitors - Solid Leaded SOLID TANTALUM |
Data Sheet |
Negotiable |
|
||||
|
TIM8596-15 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIM8596-2 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIM8596-4 |
Other |
|
Data Sheet |
Negotiable |
|
||||
