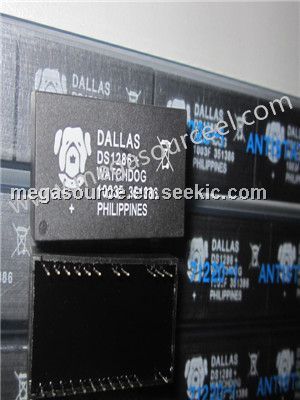

DS1286+

watchdog timekeeper, -0.3V to +7.0V, 2.0mA, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~6.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2 :	6.50 / Piece
2 ~ 100 :	5.00 / Piece

PartNumber:: DS1286+

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. hellen's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-31

From Other Seller

Part Number:DS1286+
US $5.00 - 6.50
Quantity:

piece

Product Summary

The DS1286+ Watchdog Timekeeper is a self-contained real time clock, alarm, watchdog timer, and interval timer in a 28-pin JEDEC DIP package. The DS1286+ contains an embedded lithium energy source and a quartz crystal which eliminates the need for any external circuitry. The DS1286+ information includes hundredths of seconds, seconds, minutes, hours, day, date, month, and year.

Parametrics

DS1286+ absolute maximum ratings: (1) Voltage on Any Pin Relative to Ground: -0.3 to +7.0V; (2) Operating Temperature: 0°C to 70°C; (3) -40°C to +70°C; 4) Soldering Temperature: 260°C for 10 seconds.

Features

DS1286+ features: (1) Keeps track of hundredths of seconds, seconds, minutes, hours, days, date of the month, months, and years; valid leap year compensation up to 2100; (2) Watchdog timer restarts an out-of-control processor; (3) Alarm function schedules real time-related activities; (4) Embedded lithium energy cell maintains time, watchdog, user RAM, and alarm information Programmable interrupts and square wave outputs maintain 28-pin JEDEC footprint; (5) All registers are individually addressable via the address and data bus; (6) Accuracy is better than +/- 1 minute/month at 25°C; (7) Greater than 10 years of timekeeping in the absence of VCC; (8) 50 bytes of user NV RAM.
