Product Summary

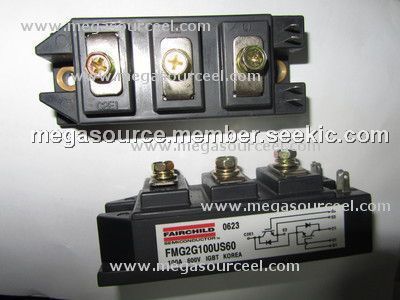

The FMG2G100US60 is a Fairchild’s Insulated Gate Bipolar Transistor (IGBT) power module. It provides low conduction and switching losses as well as short circuit ruggedness. The FMG2G100US60 is designed for applications such as motor control, uninterrupted power supplies (UPS) and general inverters where short circuit ruggedness is a required feature. The applications of the FMG2G100US60 include AC & DC Motor Controls, General Purpose Inverters, Robotics, Servo Controls and UPS.

Parametrics

FMG2G100US60 absolute maximum ratings: (1)Collector-Emitter Voltage: 600V; (2)Gate-Emitter Voltage: ± 20 V; (3)Collector Current: 100 A; (4)Pulsed Collector Current: 200 A; (5)Diode Continuous Forward Current: 100 A; (6)Diode Maximum Forward Current: 200 A; (7)Short Circuit Withstand Time: 10 us; (8)Maximum Power Dissipation: 400 W; (9)Operating Junction Temperature: -40℃ to +150℃; (10)Storage Temperature Range: -40℃ to +125℃; (11)Isolation Voltage: 2500 V.

Features

FMG2G100US60 features: (1)UL Certified No. E209204; (2)Short Circuit rated 10us @ TC = 100℃, VGE = 15V; (3)High Speed Switching; (4)Low Saturation Voltage: VCE(sat) = 2.2 V @ IC = 100A; (5)High Input Impedance; (6)Fast & Soft Anti-Parallel FWD.

Diagrams

FMG2G100US60 internal circuit diagram
