Product Summary

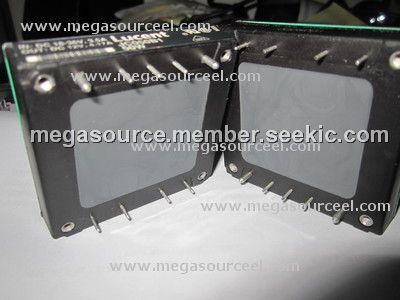

The JC050B1 is a dc-dc converter that operates over an input voltage range of 18 Vdc to 36 Vdc and provide a precisely regulated dc output. The outputs are fully isolated from the inputs, allow-ing versatile polarity configurations and grounding connections. The modules have maximum power ratings from 50 W to 100 W at typical full-load efficiency of 85%. The applications of the JC050B1 are (1)Distributed power architectures; (2)Workstations; (3)EDP equipment; (4)Telecommunications.

Parametrics

JC050B1 absolute maximum ratings: (1)Input Voltage: Continuous,VI: 40Vdc; (2)Transient (100 ms), VI, trans: 50Vdc; (3)I/O Isolation Voltage: 1500 Vdc; (4)Operating Case Temperature, TC: –40 to 100℃; (5)Storage Temperature Tstg: –40 to 110℃.

Features

JC050B1 features: (1)Small size: 61.0 mm × 57.9 mm × 13.1 mm (2.40 in. × 2.28 in. × 0.52 in.); (2)High power density; (3)High efficiency: 85% typical; (4)Low output noise; (5)Constant frequency; (6)Industry-standard pinout; (7)Metal baseplate; (8)2:1 input voltage range; (9)Overtemperature protection (100 W only); (10)Remote sense; (11)Remote on/off; (12)Adjustable output voltage; (13)Case ground pin; (14)UL Recognized, CSA Certified, VDE Licensed.

Diagrams

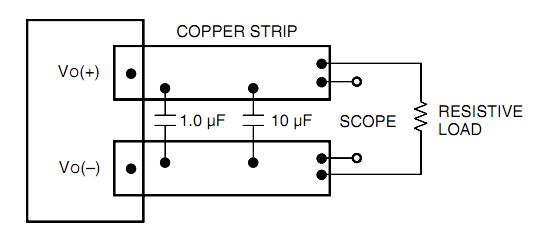

JC050B1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
JC050B1
JC050B1

GE Energy (Lineage Power)

DC/DC Converters 12V 4.2A 50W 9-Pin

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
JC050A1
JC050A1

GE Energy (Lineage Power)

DC/DC Converters 5V 10A 50W 9-Pin

Data Sheet

Negotiable
JC050B1
JC050B1

GE Energy (Lineage Power)

DC/DC Converters 12V 4.2A 50W 9-Pin

Data Sheet

Negotiable
JC050C1
JC050C1

GE Energy (Lineage Power)

DC/DC Converters 15V 3.33A 50W 9-Pin

Data Sheet

Negotiable
JC050B
JC050B


CONVERTER DC/DC 12V 50W OUT

Data Sheet

Negotiable
JC050A
JC050A


CONVERTER DC/DC 5V 50W OUT

Data Sheet

Negotiable
JC050F1
JC050F1

GE Energy (Lineage Power)

DC/DC Converters 3.3V 10A 33W 9-Pin

Data Sheet

Negotiable
